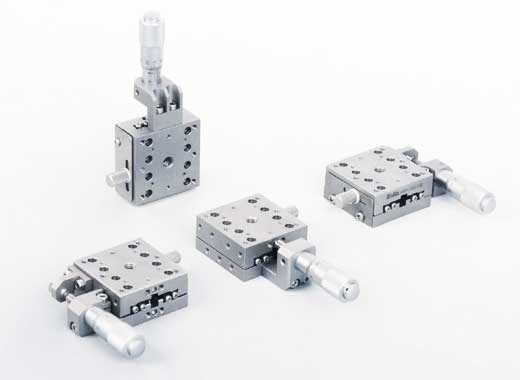

SK系列
| 型號 | SK13(A)-40(xx) | SK13(A)-60(xx) | SK25(A)-65(xx) |
| 行程 | 13 | 13 | 25 |
| 臺面尺寸 | 40×40 | 60×60 | 65×65 |
| 厚度 | 19.5 | 20 | 23 |
| 導軌 | 交叉滾柱導軌 | ||
| 驅動方式 | 螺紋副(帶A為分厘卡) | ||

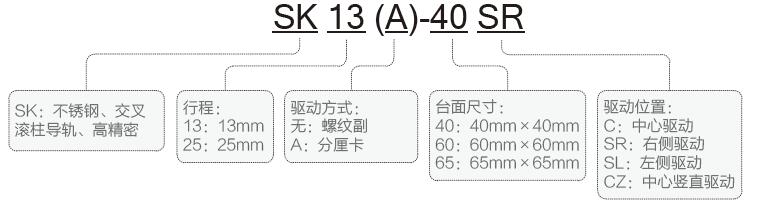

| 驅動位置 | C：中心驅動；SR：右側驅動；SL：左側驅動；CZ：中心豎直驅動 | ||
| 主體材料及表面處理 | 不銹鋼，噴砂鈍化 | ||
| 靈敏度(µm) | ≤2 | ||
| 分厘卡*小讀數(mm) | 0.01 | ||
| 直線度(µm) | ≤3 | ||
| 水平負載(Kg) | 5 | 6 | 7 |
| 豎直負載(Kg) | 1.5 | 2 | 2.5 |
| 自重(Kg) | 0.28 | 0.5 | 0.86 |
|
型號 |
PDF圖紙 |
3D圖紙 |
|---|---|---|
|
SK13-40C |
|
|
|
SK13A-40C |
|
|
|
SK13-40CZ |
|
|
|
SK13A-40CZ |
|
|
|
SK13-40SR |
|
|
|
SK13A-40SR |
|
|
|
SK13-40SL |
|
|
|
SK13A-40SL |
|
|
|
SK13-60C |
|
|
|
SK13A-60C |
|
|
|
SK13-60CZ |
|
|
|
SK13A-60CZ |
|
|
|
SK13-60SR |
|
|
|
SK13A-60SR |
|
|
|
SK13-60SL |
|
|
|
SK13A-60SL |
|
|
|
SK25-65C |
|
|
|
SK25A-65C |
|
|
|
SK25-65CZ |
|
|
|
SK25A-65CZ |
|
|
|
SK25-65SR |
|
|
|
SK25A-65SR |
|
|
|
SK25-65SL |
|
|
|
SK25A-65SL |
|
|
